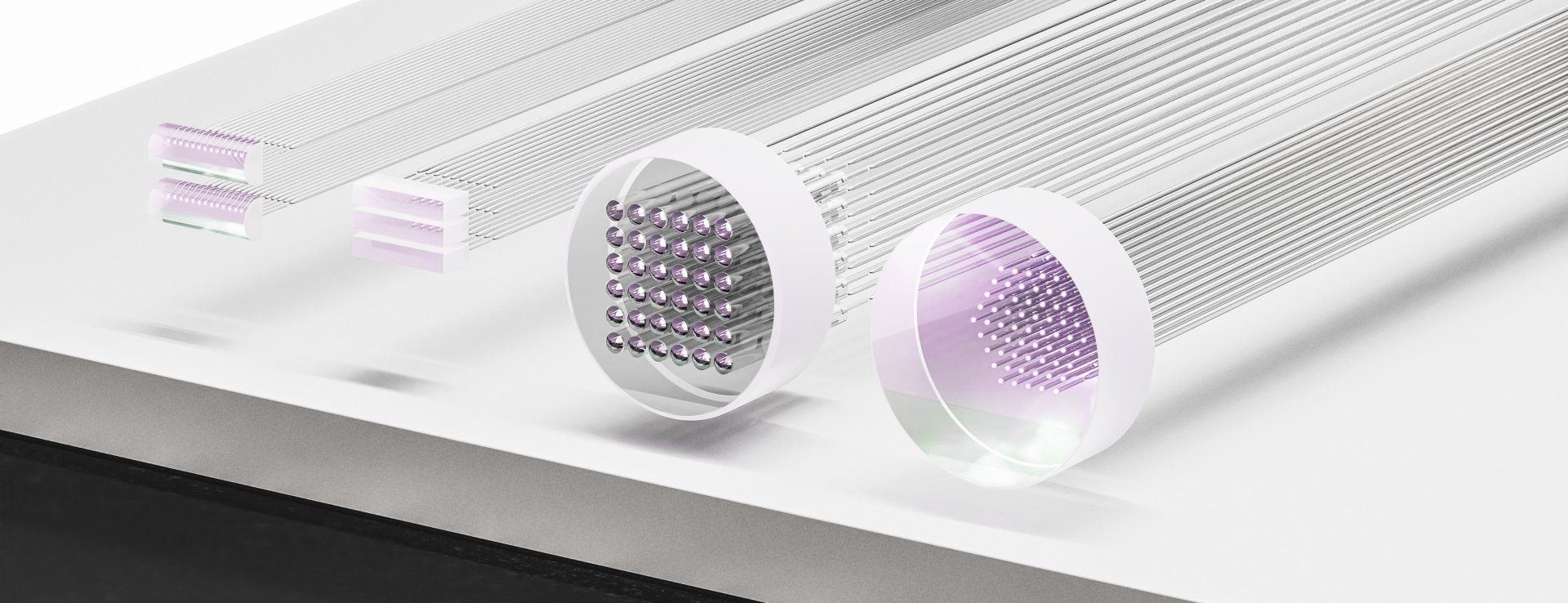

Optical Fiber Arrays for High Power Applications

 Optical Fiber Arrays

Optical Fiber Arrays

Optical Fiber Arrays

| Fully monolithic all-glass solution
| For high power applications
| Linear and 2D fiber arrangements
| For laser beam delivery
| Fiber array with microlenses
| Single-mode, multi-mode, LMA fiber
| PM fiber arrays

| Highlights

| Assembly and Packaging Solutions

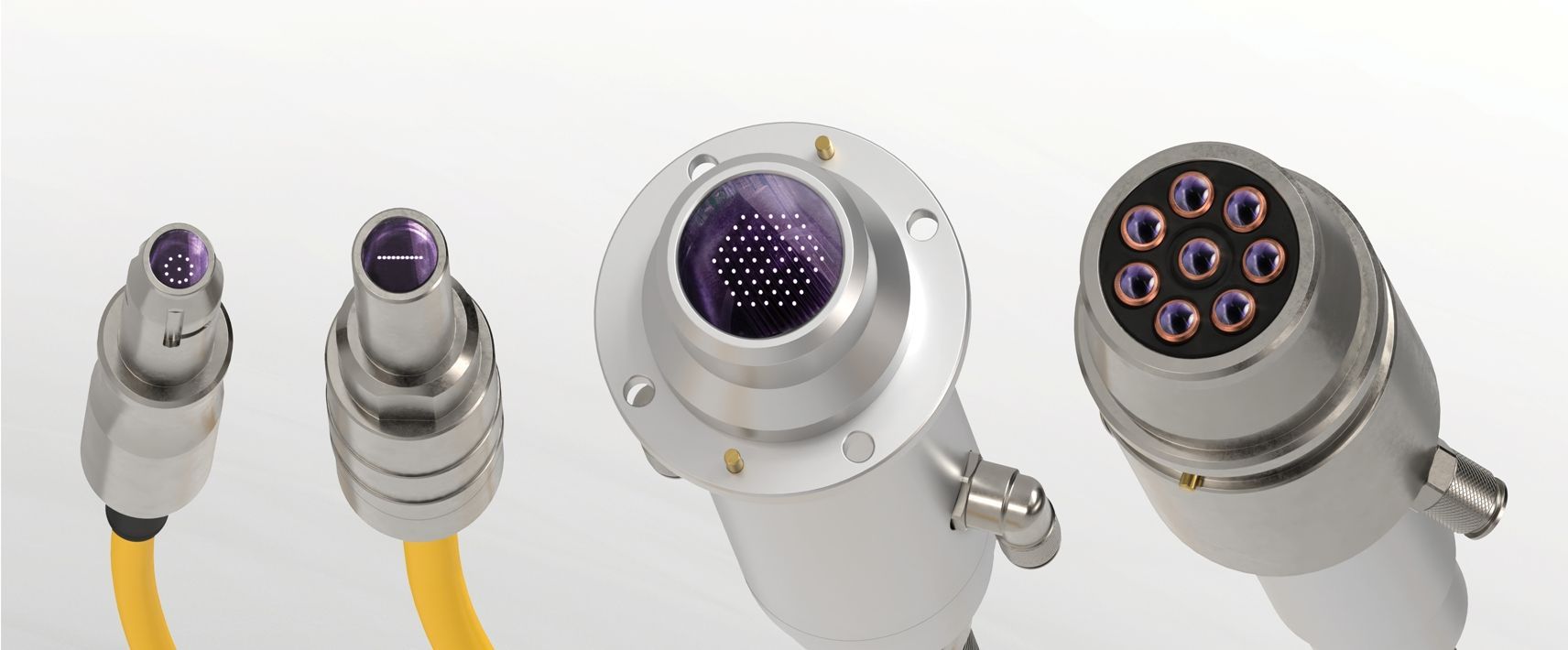

A hexagonal fiber array integrated into a water-cooled connector for high laser power applications.

| Typ. Technical Data

Number of fiber channels 100+ (depends on configuration)
Fiber cladding diameter 125µm - 600µm
Fiber type Active or passive, PM or non-PM
Fiber Arrangements Linear, Circular, rectangular, hexagonal, ...
Fiber end cap size Up to 50mm
Fiber end cap shape Linear, rectangular, circular,...
AR coating Customized (optimized for high power)
Power handling capability per channel Multi-kW power level
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.

| Applications

| Fiber lasers and amplifiers
| Laser beam combining
| Coherent beam combining of fiber amplifier
| Spectral beam combining of fiber amplifier and laser
| Multiple laser beam processes
| Selective laser melting
| Laser beam shaping
| Laser beam delivery
| Direct diode laser processing
| Fiber-to-chip coupling for photonic integrated circuits
| Fiber array connectors for data center applications.
