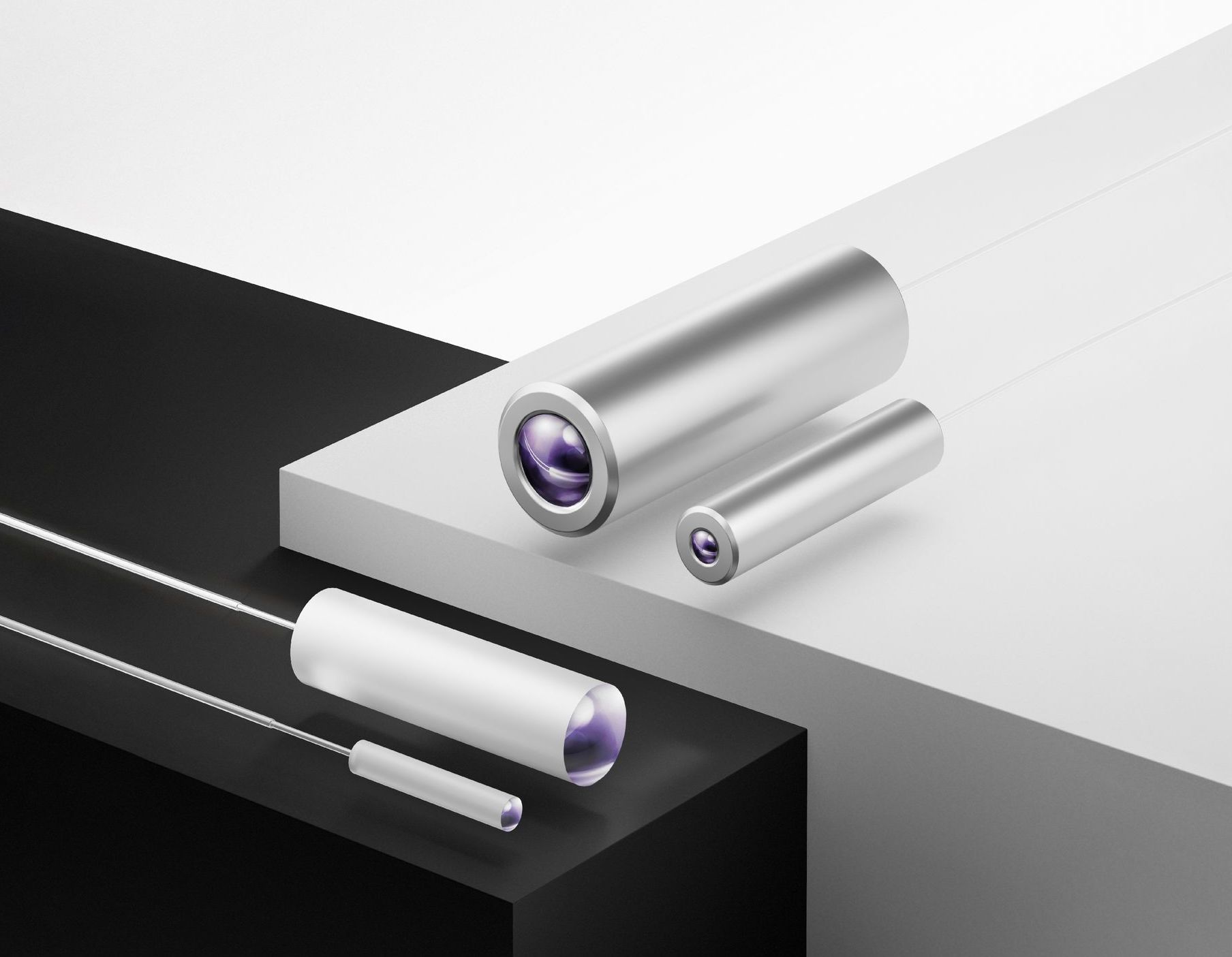

Fiber Collimators

| Fully monolithic all-glass solution
| Brilliant beam quality
| Stable performance in harsh environment
| KW-class power handling
| Low absorption glass and coating
| Fiber diameter from 125 µm to 1 mm
| PM or non-PM / Active or passive fiber

| Typ. Technical Data

Wavelength 400 - 2200 nm
Fiber type Active or passive, PM or non-PM
AR coating On request
Cladding light stripper On request
Insertion loss ≤ 0.1dB
Lense diameter 2 - 10mm (can be customized)
Focal length 10 - 20mm (can be customized)
Housing diameter 0.5in or 1.0in (can be customized)
All listed parameters are typical values specified at room temperature. Specifications are subject to change without notice.

| Applications

| High power lasers and amplifiers
| Beam delivery for SM, LMA and MM fiber
| Laser communication
| Laser countermeasure system
| Industrial, Biomedical, Telecom, Metrology
| Life science, Imaging, Quantum optics
