Large Core Amplifier

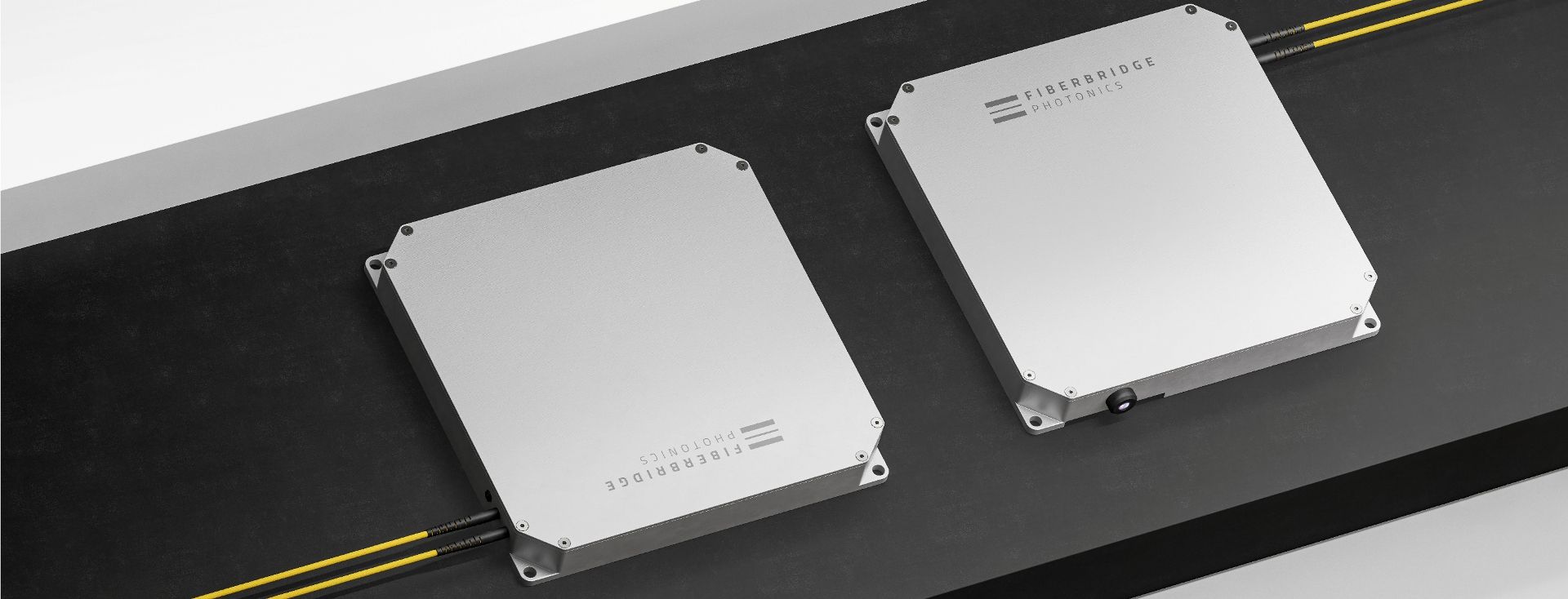

Large Core Fiber Amplifier Modules

| Highlights

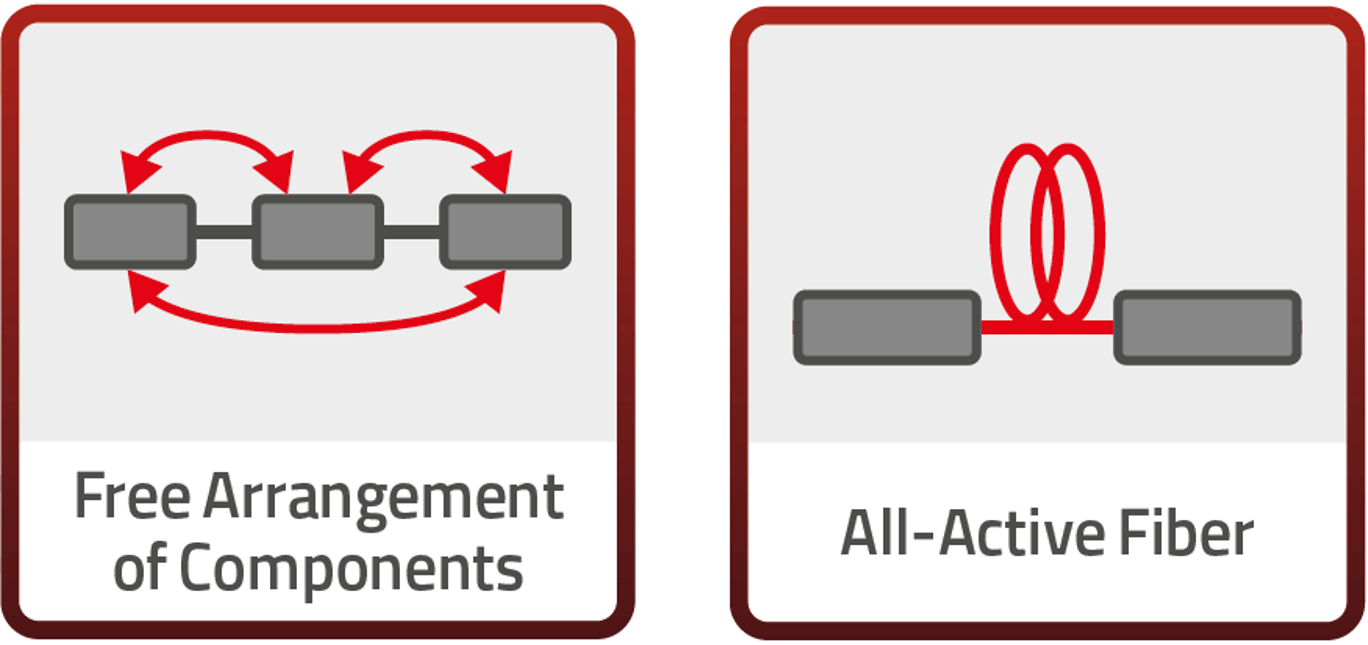

| All components integrated in active fiber (no additional passive fiber)

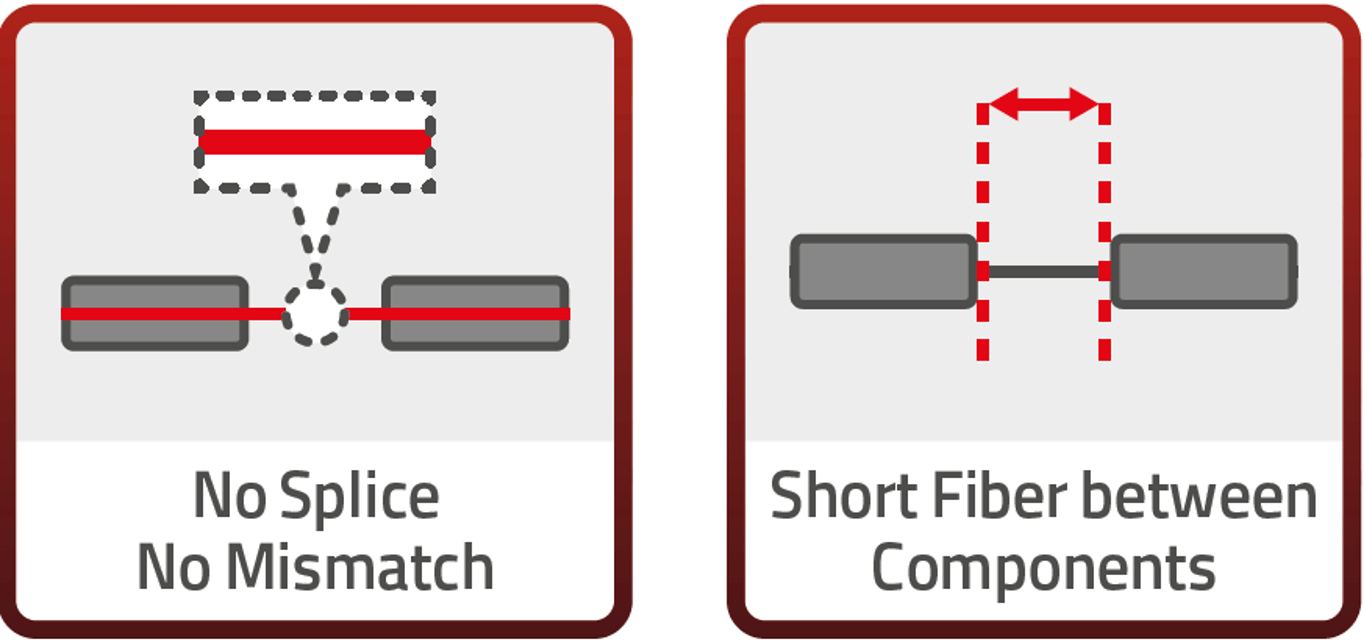

| No/Less splices between fiber components (important for LMA fibers)
| Short fiber length between components (low fiber nonlinearities)
| Co/Counter-pumping  (optimized power distribution along the active fiber)
| Power scaling of ultrashort pulse lasers and narrow linewidth lasers

 | Highlights

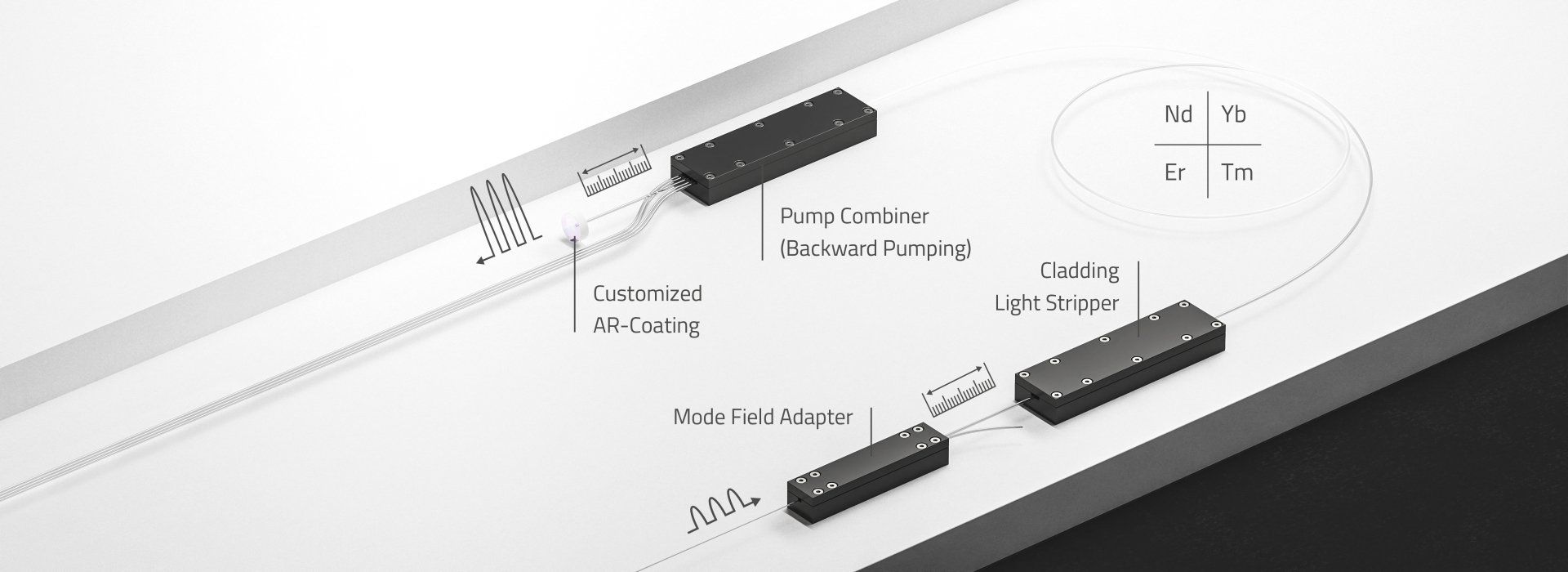

Are you interested in individualized ready-to-use splice-free fiber amplifier modules? FiberBridge Photonics offers co- and counter-propagation pumped fiber OEM amplifier modules including all necessary fiber components (no electronics and pump diodes). One of the major strengths of FiberBridge Photonics is the integration of all fiber components to the active fiber resulting in no/less splices and short fiber lengths between the fiber components. The fiber length as well as the arrangement of fiber components can be adapted to customer needs. Perfectly matched fiber components from one supplier ensures excellent optical performance, which is especially important for large-mode-area (LMA) fibers.

 | Standard Configurations

Fiber Type - Spliceless Amplifier Pump Configuration Wavelength
Yb-DC-20/125 Forward / Backward 1030nm, 1060nm
Yb-DC-PM-20/125 Forward / Backward 1030nm, 1060nm
Yb-DC-25/250 Forward / Backward 1030nm, 1060nm
Yb-DC-PM-25/250 Forward / Backward 1030nm, 1060nm
Yb-DC-30/250 Forward 1030nm, 1060nm
Yb-DC-PM-30/250 Forward 1030nm, 1060nm
| Ask for spliceless Nd, Er, Er/Yb and Tm fiber amplifier modules

| Applications

| Pulsed fiber laser and amplifier
| High power fiber amplifier
| Ultrashort pulse amplifier
| Laser Communication for Space
| Narrow linewidth fiber amplifier
| Single frequency amplifier
| High Energy Laser (HEL)
| Directed Energy Applications

| Configurate Fiber Module
